Execute JavaScript in a UIWebView

Do not attempt to call the stringByEvaluatingJavaScriptFromString: method of the UIWebView until the UIWebViewDelegate says that the UIWebView has finished loading its contents.

Source code in Javascript.zip

  1. Class AppDelegate
  2. Class ViewController is also the UIWebViewDelegate.
  3. javascript.html. The HTML non-breaking space   prevents the info window from scrunching up (sometimes). See the JavaScript API for Google Maps.

Create the project

In Main.storyboard, tell the ViewController to create a view of class UIWebView. To add the text file javascript.html to the project, follow the instructions in the exercise in States.

Turn on the JavaScript Console in Safari

To see the Develop menu in Safari,
Safari → Preferences… → Advanced
☑ Show Develop menu in menu bar

To enable JavaScript in Safari,
Safari → Preferences… → Security
Web content: ☑ Enable JavaScript

To see the error console in Safari,
Develop → Show Error Console

Turn on the JavaScript Console in Safari on Windows Vista

Edit → Preferences → Advanced
✓ Show Develop menu in menu bar

Turn on the JavaScript Console in Firefox on Mac

Firefox → Preferences… → Content
Enable JavaScript
Tools → Error Console
All

Turn on the JavaScript Console in Chrome on Mac

View → Development → JavaScript Console

print output from the web view delegate

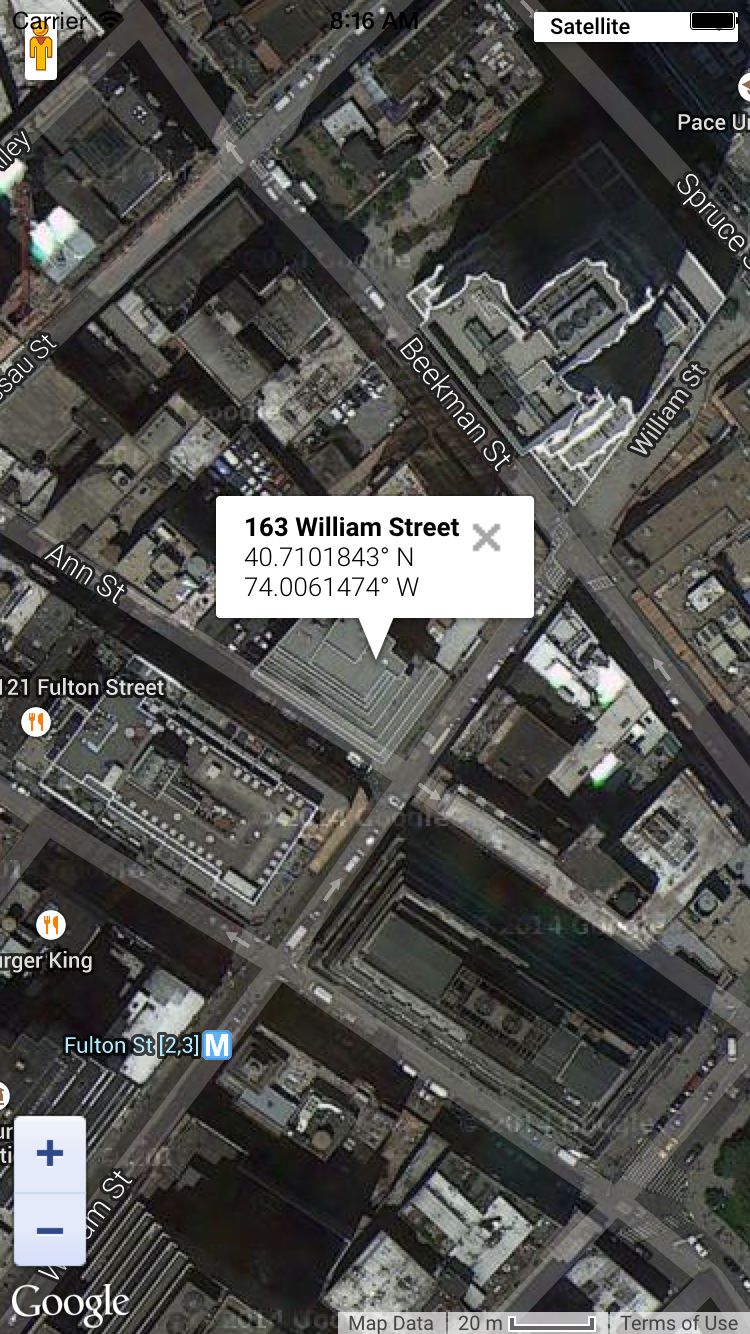

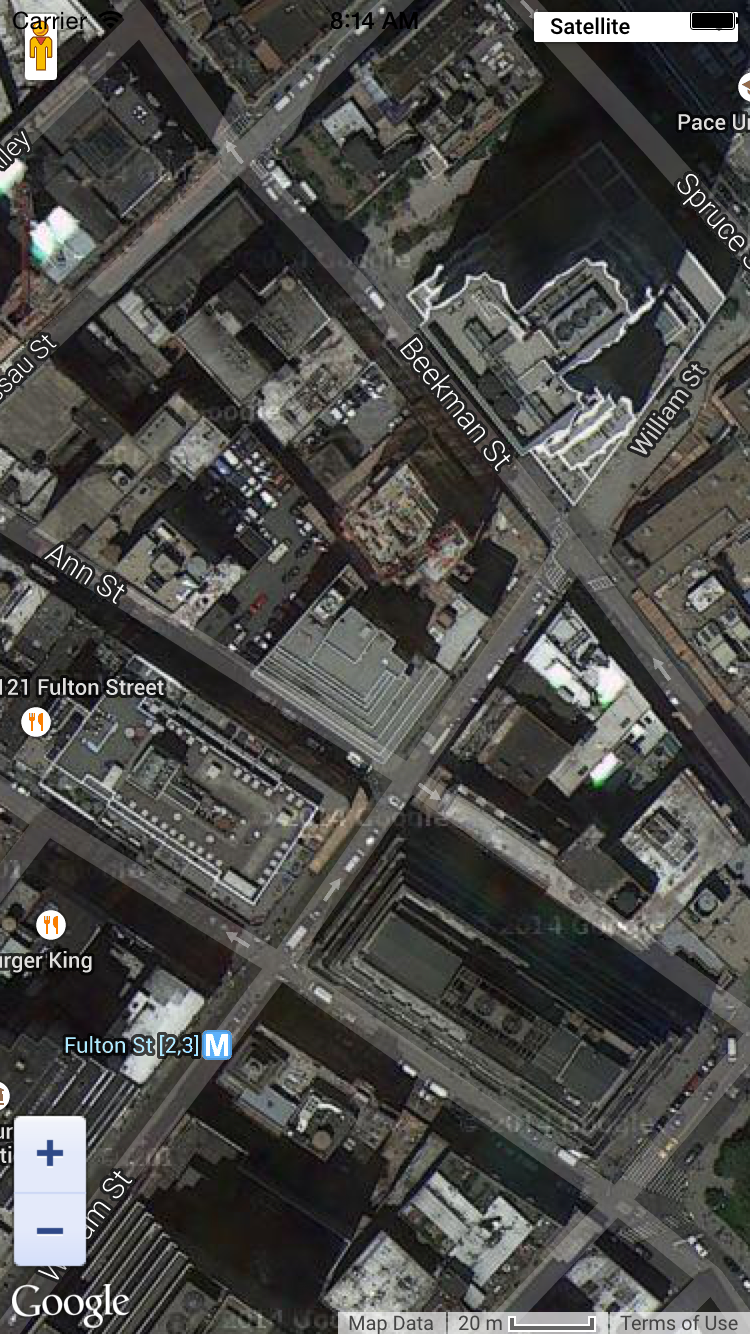

javaScript = "showmap(40.7101843, -74.0061474, 18);"
retval! = 12345
n! = 12345

Things to try

  1. In the showmap function in javascript.html, change HYBRID to ROADMAP, SATELLITE, or TERRAIN.

  2. One by one, uncomment the three chunks of code in the showmap function in javascript.html. The title of the marker is not displayed in the iPS Simulator.

  3. Add the traffic layer to the map. Make sure the map type is ROADMAP or HYBRID. Decrease the zoom level to 12 in the webViewDidFinishLoad(_:) method of class View. Then add the following statements to the showmap function in javascript.html, immediately after the statement that creates the map variable.
    	var trafficLayer = new google.maps.TrafficLayer();
    	trafficLayer.setMap(map);

    What about the bicycling layer?

  4. Use the technology described below to display medical imagery, or the Mandelbrot Set, or the high-resolution photos of the Unicorn Tapestries at the Cloisters.

Google Map tiles

A Google map is made of tiles. Each tile is a separate image file, usually of 256 × 256 pixels. Each tile has a URL. The URLs of the following tiles begin with https://mts0.google.com/vt/ (or mts1, mts2, mts3 for the other map tile servers). For example, the URL of the first tile is https://mts0.google.com/vt/x=0&y=0&z=0. (For satellite, use https://mts0.google.com/vt/x=0&y=0&z=0&lyrs=s.)

At zoom level 0, the entire map is 1 tile wide and 1 tile high.

x=0&y=0&z=0

At zoom level 1, the map is 2 tiles wide and 2 tiles high.

x=0&y=0&z=1 x=1&y=0&z=1
x=0&y=1&z=1 x=1&y=1&z=1

At zoom level 2, the map is 4 tiles wide and 4 tiles high.

x=0&y=0&z=2 x=1&y=0&z=2 x=2&y=0&z=2 x=3&y=0&z=2
x=0&y=1&z=2 x=1&y=1&z=2 x=2&y=1&z=2 x=3&y=1&z=2
x=0&y=2&z=2 x=1&y=2&z=2 x=2&y=2&z=2 x=3&y=2&z=2
x=0&y=3&z=2 x=1&y=3&z=2 x=2&y=3&z=2 x=3&y=3&z=2

The Moon

New York Times article.

The URLs of the following tiles begin with http://mw1.google.com/mw-planetary/lunar/lunarmaps_v1/clem_bw/. For example, the URL of the first tile is http://mw1.google.com/mw-planetary/lunar/lunarmaps_v1/clem_bw/0/0/0.jpg.

0/0/0.jpg the corresponding tile for the Earth

At zoom level 1, the map is 2 tiles wide and 2 tiles high.

1/0/1.jpg 1/1/1.jpg
1/0/0.jpg 1/1/0.jpg

At zoom level 2, the map is 4 tiles wide and 4 tiles high.

2/0/3.jpg 2/1/3.jpg 2/2/3.jpg 2/3/3.jpg
2/0/2.jpg 2/1/2.jpg 2/2/2.jpg 2/3/2.jpg
2/0/1.jpg 2/1/1.jpg 2/2/1.jpg 2/3/1.jpg
2/0/0.jpg 2/1/0.jpg 2/2/0.jpg 2/3/0.jpg

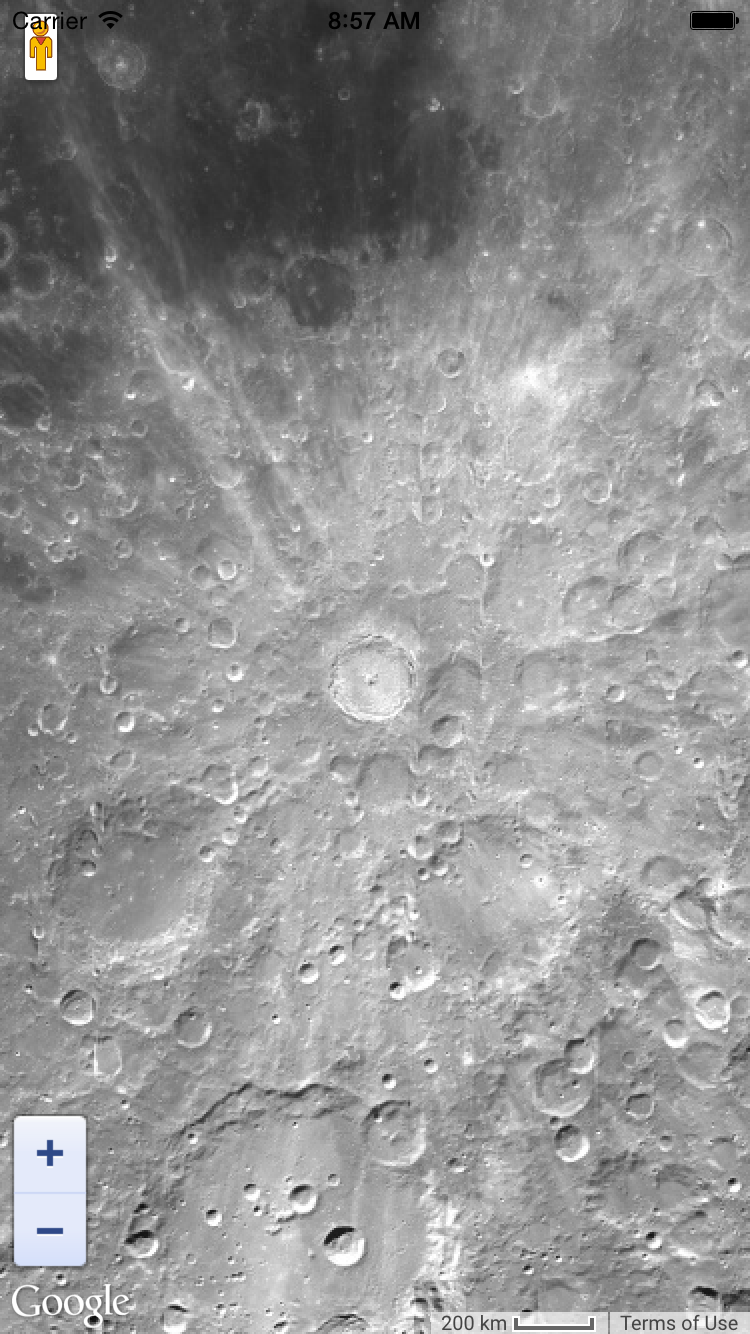

To see Tycho, the most conspicuous crater on the Moon, change the contents of the javascript.html file to the following.

<!DOCTYPE html>
<HTML STYLE = "height: 100%;">
<HEAD>
<META NAME = "viewport" CONTENT = "initial-scale=1.0, user-scalable = yes"/>
<META HTTP-EQUIV = "content-type" CONTENT = "text/html; charset = UTF-8;"/>

<SCRIPT TYPE = "text/javascript"
	SRC = "http://maps.google.com/maps/api/js?sensor=false"></SCRIPT>

<SCRIPT TYPE = "text/javascript">

function MoonMapType() {}	//constructor
MoonMapType.prototype.name = "Moon";
MoonMapType.prototype.alt = "Clementine Moon Map";
MoonMapType.prototype.minZoom = 0;
MoonMapType.prototype.maxZoom = 9;
MoonMapType.prototype.radius = 1738000;	//of Moon in meters
MoonMapType.prototype.tileSize = new google.maps.Size(256, 256);

MoonMapType.prototype.getTile = function(coord, zoom, ownerDocument) {
	//The map is n by n tiles, where n == 2 ** zoom.
        var n = 1 << zoom;

	//Can't go above the north pole or below the south pole,
        var y = coord.y;
        if (y < 0 || y >= n) {
                return null;
        }

	//but can go round and round forever in the east/west direction.
        var x = coord.x % n;
        if (x < 0) {
                x += n;
        }

	var img = ownerDocument.createElement("IMG");
	img.src = "http://mw1.google.com/mw-planetary/lunar/lunarmaps_v1"
		+ "/clem_bw/" + zoom + "/" + x + "/" + (n - y - 1) + ".jpg";
	return img;
};

//This function is called by the webViewDidFinishLoad: method of the
//UIWebViewDelegate.

function showmap(latitude, longitude, zoom) {
	var options = {
		center: new google.maps.LatLng(latitude, longitude),
		mapTypeControl: false,
		scaleControl: true,
		zoom: zoom
	};

	var map = new google.maps.Map(document.getElementById("mapDivision"),
		options);
	map.mapTypes.set("moon", new MoonMapType());	//add to map's registry
	map.setMapTypeId("moon");
}
</SCRIPT>
</HEAD>

<BODY STYLE = "height: 100%; margin: 0px;">
<DIV ID = "mapDivision" STYLE = "height: 100%;"></DIV>
</BODY>
</HTML>

In the webViewDidFinishLoad(_:) method of the web veiw delegate, change the variable javascript to the following.

		let javascript: String = String(format: "showmap(%.15g, %.15g, %d);",
			//the crater Tycho on the Moon
			-43.0,		//latitude
			-11.2,		//longitude
			4);		//zoom level

The Sky

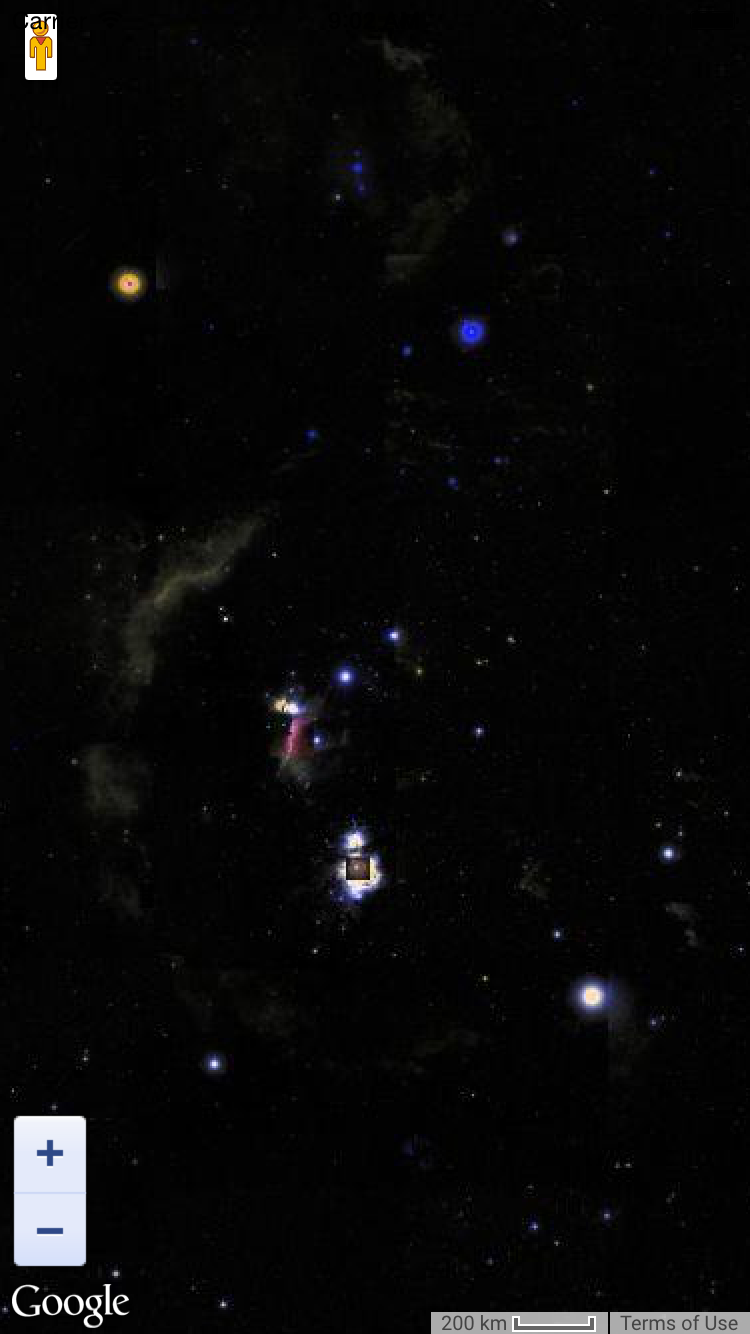

To see Orion the Hunter, the most conspicuous constellation in the sky, change img.src to

	img.src = "http://mw1.google.com/mw-planetary/sky/skytiles_v1/" +
		coord.x + "_" + coord.y + '_' + zoom + '.jpg';
Change the maximum zoom level to 13 and the radius to I don’t know what. Does the sky even have a radius? In this example, the radius of the sky is 180/π (the number of degrees in a radian), but I don’t know why.

In the webViewDidFinishLoad(_:) method of class View, change the variable javaScript to the following.

		let javascript: String = String(format: "showmap(%.15g, %.15g, %d);",
			//the constellation Orion the Hunter
			-1.0,			//latitude
			6.44 * 360.0 / 24.0,	//longitude
			5);			//zoom level

Betelgeuse is to the upper left, Rigel to lower right. The right ascension should be about 5½ hours; I don’t understand why I had to ask for 6.44.

Mars

The URL of each tile begins with http://mw1.google.com/mw-planetary/mars/visible/. For example, the URL of the first tile is http://mw1.google.com/mw-planetary/mars/visible/t.jpg. The qrst names of the tiles make the JavaScript more complicated. At zoom level 0, the map is 1 tile wide and 1 tile high.


At zoom level 1, the map is 2 tiles wide and 2 tiles high.

tq.jpg tr.jpg
tt.jpg ts.jpg

At zoom level 2, the map is 4 tiles wide and 4 tiles high.

tqq.jpg tqr.jpg trq.jpg trr.jpg
tqt.jpg tqs.jpg trt.jpg trs.jpg
ttq.jpg ttr.jpg tsq.jpg tsr.jpg
ttt.jpg tts.jpg tst.jpg tss.jpg

To see Olympus Mons, the most conspicuous volcano on Mars, change the contents of the javascript.html file to the following.

<!DOCTYPE html>
<HTML STYLE = "height: 100%;">
<HEAD>
<META NAME = "viewport" CONTENT = "initial-scale=1.0, user-scalable = yes"/>
<META HTTP-EQUIV = "content-type" CONTENT = "text/html; charset = UTF-8;"/>

<SCRIPT TYPE = "text/javascript"
	SRC = "http://maps.google.com/maps/api/js?sensor=false"></SCRIPT>

<SCRIPT TYPE = "text/javascript">

function MarsMapType() {}	//constructor
MarsMapType.prototype.name = "Mars";
MarsMapType.prototype.alt = "JPL Mars Map";
MarsMapType.prototype.minZoom = 0;
MarsMapType.prototype.maxZoom = 9;
MarsMapType.prototype.radius = 3396200;	//of Mars in meters
MarsMapType.prototype.tileSize = new google.maps.Size(256, 256);

MarsMapType.prototype.getTile = function(coord, zoom, ownerDocument) {
	//The map is n by n tiles, where n == 2 ** zoom.
        var n = 1 << zoom;

	//Can't go above the north pole or below the south pole,
        var y = coord.y;
        if (y < 0 || y >= n) {
                return null;
        }

	//but can go round and round forever in the east/west direction.
        var x = coord.x % n;
        if (x < 0) {
                x += n;
        }

	var quadrant = new Array(
		new Array("q", "r"),
		new Array("t", "s")
	);

	var img = ownerDocument.createElement("IMG");
	img.src = "http://mw1.google.com/mw-planetary/mars/visible/t";

	var x = coord.x;
	var y = coord.y;

	for (var n = 1 << zoom - 1; n > 0; n >>= 1) {
		img.src += quadrant[Math.floor(y / n)][Math.floor(x / n)];
		x %= n;
		y %= n;
	}

	img.src += ".jpg";
	return img;
};

//This function is called by the webViewDidFinishLoad: method of the
//UIWebViewDelegate.

function showmap(latitude, longitude, zoom) {
	var options = {
		center: new google.maps.LatLng(latitude, longitude),
		mapTypeControl: false,
		scaleControl: true,
		zoom: zoom
	};

	var map = new google.maps.Map(document.getElementById("mapDivision"),
		options);
	map.mapTypes.set("mars", new MarsMapType());	//add to map's registry
	map.setMapTypeId("mars");
}
</SCRIPT>
</HEAD>

<BODY STYLE = "height: 100%; margin: 0px;">
<DIV ID = "mapDivision" STYLE = "height: 100%;"></DIV>
</BODY>
</HTML>

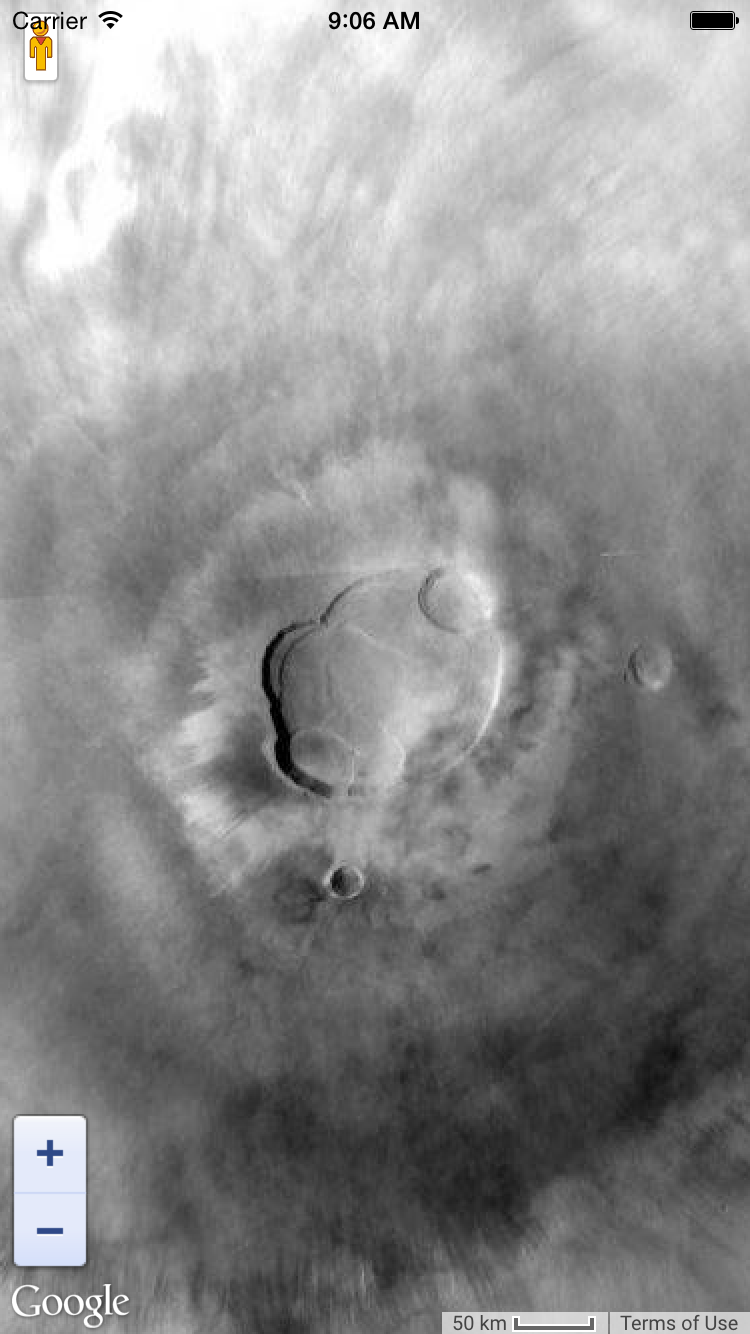

Then go to latitude 18.4, longitude 226.75, zoom 7.
