MainActivity.java
PresidentContract.java
PresidentProvider.java
Helper.java
activity_main.xml
strings.xml
AndroidManifest.xml.
The
<manifest>
element contains two
<permission>
elements.
The
<application>
element contains a
<provider>
element.
build.gradle
(Module: app)
MainActivity.java
PresidentContract.java:
identical to the
PresidentContract.java
in the content provider,
except for the
package
statement.
activity_main.xml
strings.xml
AndroidManifest.xml
build.gradle
(Module: app)
To create class
PresidentProvider,
select the
app/java/president
folder in the Android Studio
project
view
and pull down
File → New → Other → Content Provider
First run the content provider
President,
and leave it running.
You can ignore its
Activity.

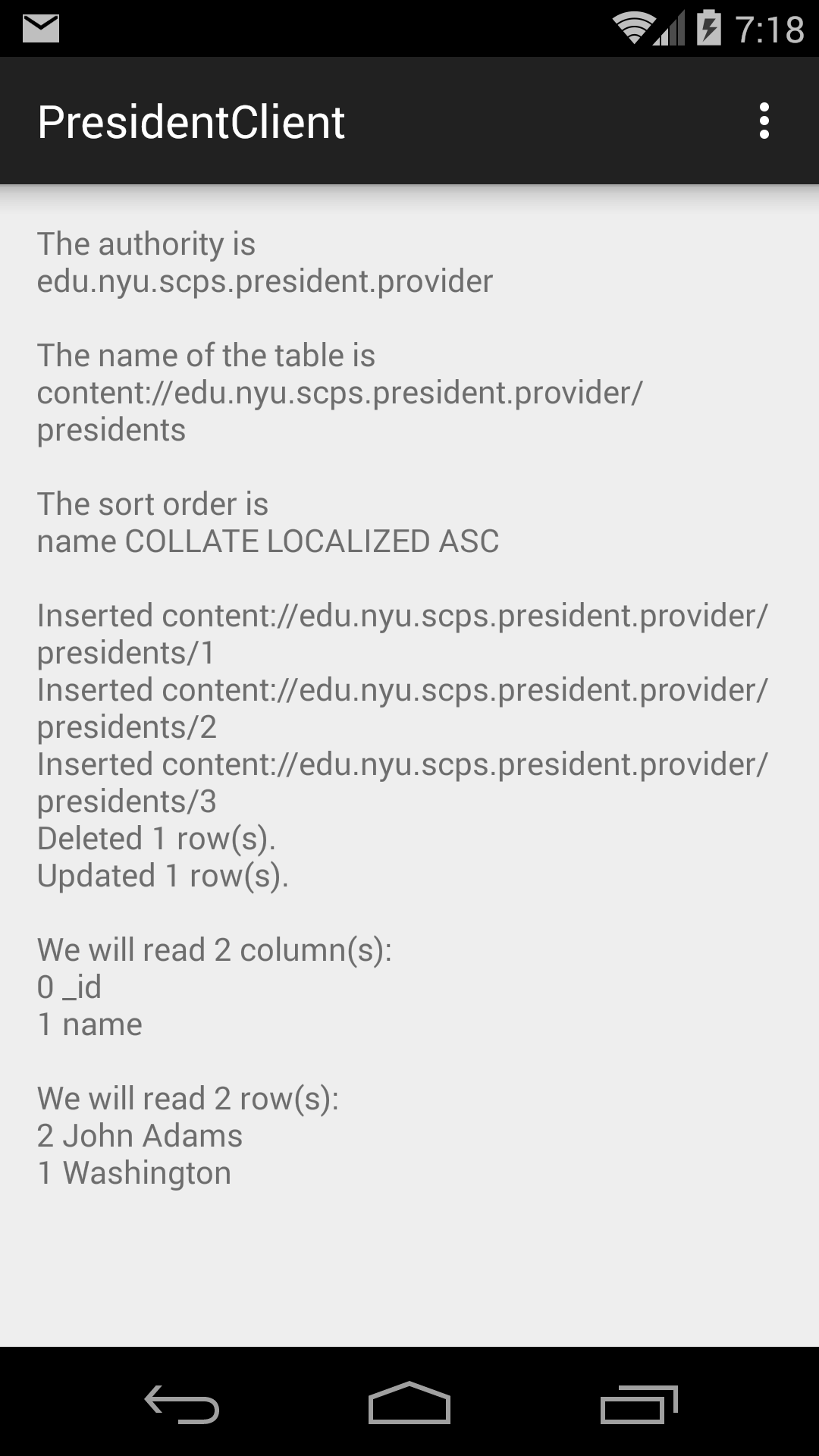

Then run
PresidentCleint
as many times as you want.
After its first run,
the content provider’s database looks like this:
adb devices
List of devices attached
192.168.57.101:5555 device
adb -s 192.168.57.101:5555 shell
cd /data/data/edu.nyu.scps.president/databases
pwd
/data/data/edu.nyu.scps.president/databases
ls -l
-rw-rw---- u0_a109 u0_a109 20480 2015-08-08 07:18 presidents.db
sqlite3 presidents.db
.tables
android_metadata presidents
.dump android_metadata
PRAGMA foreign_keys=OFF;
BEGIN TRANSACTION;
CREATE TABLE android_metadata (locale TEXT);
INSERT INTO "android_metadata" VALUES('en_US');
COMMIT;
.dump presidents
PRAGMA foreign_keys=OFF;
BEGIN TRANSACTION;
CREATE TABLE presidents (
_id INTEGER PRIMARY KEY AUTOINCREMENT,
name TEXT
);
INSERT INTO presidents VALUES(1,'Washington');
INSERT INTO presidents VALUES(2,'John Adams');
COMMIT;
.quit
exit
adb -s 192.168.57.101:5555 shell sqlite3 /data/data/edu.nyu.scps.president/databases/presidents.db "'.dump presidents'" PRAGMA foreign_keys=OFF; BEGIN TRANSACTION; CREATE TABLE presidents ( _id INTEGER PRIMARY KEY AUTOINCREMENT, name TEXT ); INSERT INTO presidents VALUES(1,'Washington'); INSERT INTO presidents VALUES(2,'John Adams'); COMMIT;
